Terranova GEN2 Offsets
The Toughest in it's class just got tougher!

The Metis TerraNova GEN2 offset discs are here. We have gone stronger and heavier with a 200mm x 100mm x 10mm reinforced frame. These offsets are the strongest and heaviest in their class, built to tackle a wide range of farming applications.

The TerraNova HydraJust system (Patent Pending) allows you to easily and quickly adjust the angle of your disc gangs... The wider the angle, the more aggressive the TerraNova will plow.

The TerraNova GEN2 has a wide range of features such as

Hydra-Just -hydraulic gang adjustment (Patent Pending)

28" x 8mm discs with 55mm gang axles

230mm (9") disc spacings (Steel spacers)

Solid tyres - no more flats in the paddock

Filler disc for a cleaner finish

Adjustable scrapers (double gusset arms) for maximum flexibility

Twin hydraulic lift cylinders with burst valves

Hydraulic drawbar to offset crabbing

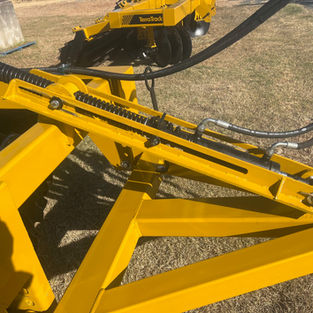

Hydraulic twin spring pitch control - level your machine with ease

Two Pack 520 paint

plus a range of other features (CLICK HERE)

.

There are a range of options available for the TerraNova, and feel free to talk to us about your custom needs.

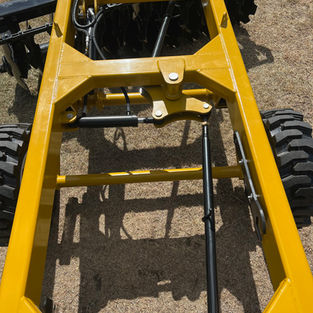

Hydra-Just (hydraulic gang adjustment)
Change the angle of your plow gangs with ease with our hydraulic gang adjustment. Whether you set the angle wide for aggressive deep digging or go narrow angle for a shallower cut, with Hydra-Just, changing the gang angle is simple!

Australia wide delivery

We can arrange delivery of your implements to your farm for a fee

Discs	Working width	Hp Required	Weight	Disc size	Frame size (mm)	Price (ex GST)
20	2.3m	90-110	3400kg	28" x 8mm	200x100x10	$16,900
24	2.8m	100-120	3670kg	28" x 8mm	200x100x10	$18,850
28	3.2m	120-140	3920kg	28" x 8mm	200x100x10	$20,790
32	3.6m	130-150	4120kg	28" x 8mm	200x100x10	$22,490
36	4.2m	140-160	4610kg	28" x 8mm	200x100x10	$24,720
40	4.6m	150-170	5100kg	28" x 8mm	200x100x10	$26,950
40 (folding)	4.6m	155-175	5500kg	28" x 8mm	200x100x10	$34.950
44 (Folding)	5m	175-195	5720kg	28" x 8mm	200x100x10	$37,650
48 (Folding)	5.6m	195-215	5980kg	28" x 8mm	200x100x10	$40,450

Prices exclude GST. Prices do not include delivery charges or setup

200mm x 100mm x 10mm frame

Strongest in it's category of offset, the RHS steel main frame is fully gusseted with a extra cross beams

# of Discs	Crumble roller	Seeder (12/24v)	Seeder (Hydraulic)	Oversize sign & rear lights
20	$4,500	$4,400	$4,950	$750
24	$4950	$4,775	$5,250	$750
28	$5,450	$5,230	$5,750	$750
32	$5,775	$6,590	$6,950	$750
36	$6,050	$7,150	$7,750	$750
40	$6,590	$8,150	$8,600	$750
40 (folding)	CALL	CALL	CALL	$750

*All prices listed above are Exclusive of GST

Other Options

10.5" or12" disc spacings

Choose your own colour for machine

Reverse gang orientation

Sand spacers (narrow diameter spacers for sandy soil/deeper tillage)

extra wide 400/60 R15.5 Flotation tyres

Compare the Metis TerraNova to other brands on the market. Just choose the disc configuration below to view the data

NOTE: Competitor specifications and pricing sourced from their websites and listing agents and is correct at time of publication (10/04/26)

Specs	Metis Terra Nova	John Berends RM80	Serafin Eco	Welch HD
Working width	2.4	2.3	2.5	2.3
Disc size	28" x 8mm	26" x 6mm	26" x 6mm	28" x 8mm
Weight (kg)	3400	1700	1910	2920
Weight per disc (kg)	170	85	96	121
Disc axle size	55mm	40mm	40mm	38mm
Frame size (mm)	200 x 100 x 10	TBC	150 x 100 x 8	140 x 140 x 8
Frame strength (kg/m)	44.4	TBC	29.7	33.5
Hydraulic gang adjustment	YES	NO	NO	NO
Hydraulic pitch control	YES	NO	NO	YES
Double spring pitch	YES	NO	NO	NO
Hydraulic adjust pull	YES	NO	NO	NO
Safety cylinder burst valves	YES	NO	NO	NO
Upgraded solid tyres	YES	NO	NO	NO
Extra beam support	YES	NO	NO	NO
Swivel tow hitch	YES	NO	NO	NO
Extra helper disc	YES	NO	NO	YES
Harrow spanner set	YES	NO	NO	NO
Rear tow hitch	YES	NO	NO	NO
Gang nut locking ring	YES	NO	NO	NO
Tool box	YES	NO	NO	NO

NOTE: Competitor specifications and pricing sourced from their websites and listing agents and is correct at time of publication (10/04/26)

Specs	Metis Terra Nova	Baldan CRSG	Big Country	Grizzly OSO offset	Ilgi Megastar	John Berends RM80	Serafin Eco	Welch HD
Working width (m)	3.2	3.2	3.4	3.1	3	3.2	3.2	3.2
Disc Size	28" x 8mm	26" x 6mm	28" x 8mm	26" x 6mm	26" x 6mm	26" x 6mm	26" x 6mm	28" x 8mm
Weight (kg)	3920	2293	2360	2750	2145	2190	2270	3140
Weight per disc (kg)	140	82	84	98	77	78	81	112
Disc axle size	55mm	40mm	55mm	38mm	40mm	40mm	40mm	55mm
Frame size (mm)	200 x 100 x 10	TBC	150 x 100 x 8	105 x 100 x 9	200 x 100 x 6	TBC	150 x 100 x 8	140 x 140 x 8
Frame strength (kg/m)	44.4	TBC	29.7	33.1	27.4	TBC	29.7	33.5
Tool box	YES	NO	NO	NO	NO	NO	NO	NO
Hydraulic gang adjustment	YES	NO	NO	OPTION	OPTION	NO	NO	NO
Hydraulic pitch control	YES	NO	NO	YES	NO	NO	NO	YES
Double spring pitch	YES	NO	NO	NO	NO	NO	NO	NO
Hydraulic adjust pull	YES	NO	NO	NO	NO	NO	NO	NO
Safety cylinder burst valves	YES	NO	NO	NO	NO	NO	NO	NO
Upgraded solid tyres	YES	NO	NO	NO	NO	NO	NO	NO
Extra beam support	YES	NO	NO	YES	NO	NO	NO	NO
Swivel tow hitch	YES	NO	NO	NO	NO	NO	NO	NO
Extra helper disc	YES	NO	NO	YES	NO	NO	NO	YES
Harrow spanner set	YES	NO	NO	NO	NO	NO	NO	NO
Rear tow hitch	YES	NO	NO	NO	NO	NO	NO	NO
Gang nut locking ring	YES	NO	NO	NO	NO	NO	NO	NO
Tool box	YES	NO	NO	NO	NO	NO	NO	NO

NOTE: Competitor specifications and pricing sourced from their websites and listing agents and is correct at time of publication (10/04/26)

Contact Us

Specs	Metis Terra Nova	Baldan CRSG	Grizzly OSO offset	Ilgi Megastar	John Berends RM80	Serafin Eco	Welch HD
Working width (m)	2.8	2.7	2.6	2.6	2.74	2.8	2.7
Disc size	28" x 8mm	26" x 6mm	26" x 6mm	26" x 6mm	26" x 6mm	26" x 6mm	28" x 8mm
Weight (kg)	3670	1985	2500	1980	1970	2110	2920
Weight per disc (kg)	153	83	104	83	82	88	121
Disc Axle size	55mm	40mm	38mm	40mm	40mm	40mm	40mm
Frame size (mm)	200 x 100 x 10	TBC	150 x 100 x 9	200 x 100 x 6	TBC	150 x 100 x 8	140 x 140 x 8
Frame Strength (kg/m)	44.4	TBC	33.1	27.4	TBC	29.7	33.5
Hydraulic gang adjustment	YES	OPTION	OPTION	NO	NO	NO	NO
Hydraulic pitch control	YES	NO	YES	NO	NO	NO	YES
Double spring pitch	YES	NO	NO	NO	NO	NO	NO
Hydraulic adjust pull	YES	NO	NO	NO	NO	NO	NO
Safety cylinder burst valves	YES	NO	NO	NO	NO	NO	NO
Upgraded solid tyres	YES	NO	NO	NO	NO	NO	NO
Extra beam support	YES	NO	YES	NO	NO	NO	NO
Swivel tow hitch	YES	NO	NO	NO	NO	NO	NO
Extra helper disc	YES	NO	YES	NO	NO	NO	YES
Harrow spanner set	YES	NO	NO	NO	NO	NO	NO
Rear tow hitch	YES	NO	NO	NO	NO	NO	NO
Gang nut locking ring	YES	NO	NO	NO	NO	NO	NO
Tool box	YES	NO	YES	NO	NO	NO	NO

Specs	Metis Terra Nova	Baldan CRSG	Big Country	Grizzly OSO offset	Ilgi Megastar	John Berends RM80	Serafin Eco	Welch HD
Working width (m)	3.7	3.65	3.6	3.5	3.4	3.66	3.5	3.6
Disc size	28" x 8mm	26" x 6mm	28" x 8mm	26" x 6mm	26" x 6mm	26" x 6mm	26" x 6mm	28" x 8mm
Weight (kg)	4120	3400	2950	3000	2460	2510	2860	3370
Weight per disc (kg)	129	106	92	94	77	78	89	105
Disc axle size	55mm	40mm	55mm	38mm	40mm	40mm	40mm	55mm
Frame size (mm)	200 x 100 x 10	TBC	150 x 100 x 8	150 x 100 x 9	200 x 100 x 6	TBC	150 x 100 x 8	140 x 140 x 8
Frame strength (kg/m)	44.4	TBC	29.7	33.1	27.4	TBC	29.7	33.5
Hydraulic gang adjustment	YES	NO	NO	OPTION	OPTION	NO	NO	NO
Hydraulic pitch control	YES	NO	YES	YES	NO	NO	NO	YES
Double spring pitch	YES	NO	NO	NO	NO	NO	NO	NO
Hydraulic adjust pull	YES	NO	NO	NO	NO	NO	NO	NO
Safety cylinder burst valves	YES	NO	NO	NO	NO	NO	NO	NO
Upgraded solid tyres	YES	NO	NO	NO	NO	NO	NO	NO
Extra beam support	YES	NO	NO	YES	NO	NO	NO	NO
Swivel tow hitch	YES	NO	NO	NO	NO	NO	NO	NO
Extra helper disc	YES	NO	NO	YES	YES	OPTION	NO	YES
Harrow spanner set	YES	NO	NO	NO	NO	NO	NO	NO
Rear tow hitch	YES	NO	NO	NO	NO	NO	NO	NO
Gang locking ring	YES	NO	NO	NO	NO	NO	NO	NO
Tool box	YES	NO	NO	NO	NO	NO	NO	NO

NOTE: Competitor specifications and pricing sourced from their websites and listing agents and is correct at time of publication (10/04/26)

Specs	Metis Terra Nova	Baldan CRSG	Big Country	Grizzly OSO offset	Ilgi Megastar	Serafin Eco	Welch HD
Working width (m)	4.2	4.2	4	3.9	3.8	4.2	4.2
Disc size	28" x 8mm	26" x 6mm	28" x 8mm	26" x 6mm	26" x 6mm	26" x 6mm	26" x 8mm
Weight (kg)	4610	3480	3560	3350	2700	3230	3590
Weight per disc (kg)	128	83	99	93	75	90	99
Disc axle size	55mm	40mm	55mm	38mm	40mm	40mm	55mm
Frame size (mm)	200 x 100 x 10	TBC	150 x 100 x 8	150 x 100 x 9	200 x 100 x 6	150 x 100 x 8	140 x 140 x 8
Frame strength (kg/m)	44.4	TBC	29.7	33.1	27.4	29.7	33.5
Hydraulic gang adjustment	YES	NO	NO	OPTION	OPTION	NO	NO
Hydraulic pitch control	YES	NO	YES	YES	NO	NO	YES
Double spring pitch	YES	NO	NO	NO	NO	NO	NO
Hydraulic adjust pull	YES	NO	NO	NO	NO	NO	NO
Safety cylinder burst valves	YES	NO	NO	NO	NO	NO	NO
Upgraded solid tyres	YES	NO	NO	NO	NO	NO	YES
Extra beam support	YES	NO	NO	YES	NO	NO	NO
Swivel tow hitch	YES	NO	NO	NO	NO	NO	NO
Extra helper disc	YES	NO	NO	YES	YES	NO	YES
Harrow spanner set	YES	NO	NO	NO	NO	NO	NO
Rear tow hitch	YES	NO	NO	NO	NO	NO	NO
Gang locking ring	YES	NO	NO	NO	NO	NO	NO
Tool box	YES	NO	NO	NO	NO	NO	NO

NOTE: Competitor specifications and pricing sourced from their websites and listing agents and is correct at time of publication (10/04/26)
