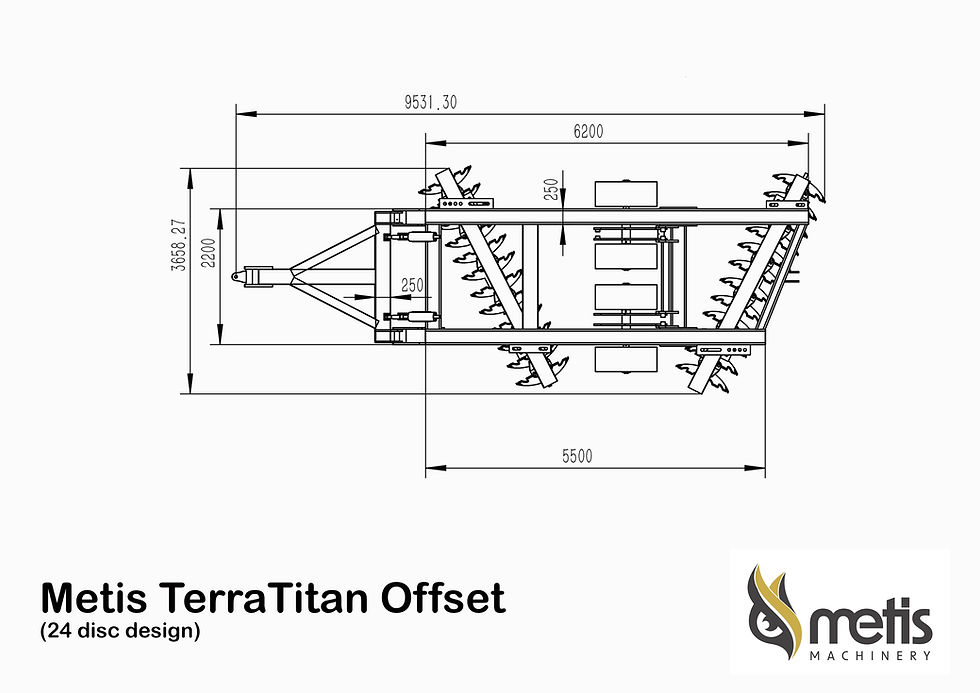

TerraTitan offset 2
TerraTitan offset 1
Coming soon
TerraTitan offset 2
1/3
terratitan
designed for extreme tillage work
Metis TerraTitan offset discs are the workhorse offsets in our range.
The TerraTitan X has the upgraded 250mm x 250mm x 20mm frame and larger (36") discs than the standard TerraTitan.
The TerraTitan Xtreme also has the upgraded 250mm x 250mm x 20mm frame, with huge 40" discs for the toughest conditions
Designed to work new country and suckers achieving depths of 300mm plus.
Discs | Working width | Hp Required | Disc size | Weight | Axles | Price |
|---|---|---|---|---|---|---|
24 | 3.6m | 200-240 | 36" x 12mm | 9,100kg | 65mm | $58,700 |
28 | 4.2m | 240-280 | 36" x 12mm | 10,100kg | 65mm | $66,400 |
32 | 4.8m | 280-320 | 36" x 12mm | 11,500kg | 65mm | $75,000 |
40 | 6m | 320+ | 36" x 12mm | 12,490kg | 65mm | $90,000 |
Prices exclude GST. Prices do not include delivery charges or setup
Discs | Working width | Hp Required | Weight | Disc size | Axles | Price |
|---|---|---|---|---|---|---|
24 | 3.6m | 230-260 | 12,000kg | 38" x 16mm | 100mm | $68,250 |
28 | 4.2m | 260-290 | 12,950kg | 38" x 16mm | 100mm | $77,000 |
32 | 4.8m | 290-320 | 14,600kg | 38" x 16mm | 100mm | $87,250 |
40 | 6m | 320+ | 16,100kg | 38" x 16mm | 100mm | $99,950 |
Prices exclude GST. Prices do not include delivery charges or setup
